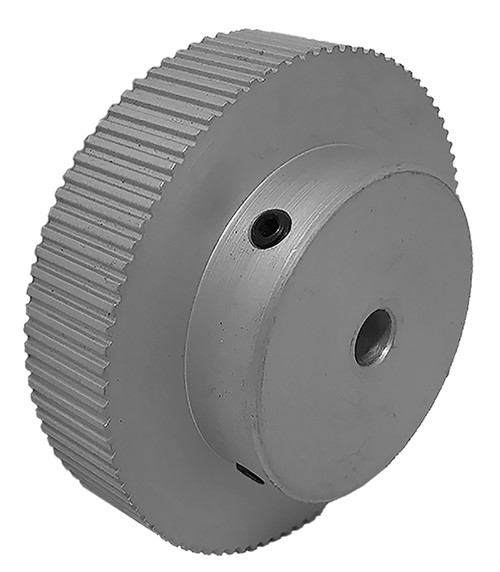

100LT312-6A5 Imperial Pitch Pulleys

100LT312-6A5

Product Details for 100LT312-6A5

List Price: $25.87

Specifications

Product Number 100LT312-6A5
Teeth 100
Tooth Style LT
For Belt Width (in) 0.313
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.5
Pitch Diameter (in) 2.600
Outside Diameter (in) 2.586
Flange Diameter (in) 0.375
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.5
Unit System Inch
Weight (lb) 0.32
Discount Price (10-24 Qty.) (USD) $24.57
Discount Price (25-49 Qty.) (USD) $23.28
Discount Price (50-99 Qty.) (USD) $19.40
Discount Price (100-249 Qty.) (USD) $18.11
Part Number Cross Reference A 6A6-100NF03112,

Documentation

General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
