100-2P06-6A4, Timing Pulley

100-2P06-6A4 - Aluminum Powerhouse® Pulleys

100-2P06-6A4

Click to Enlarge

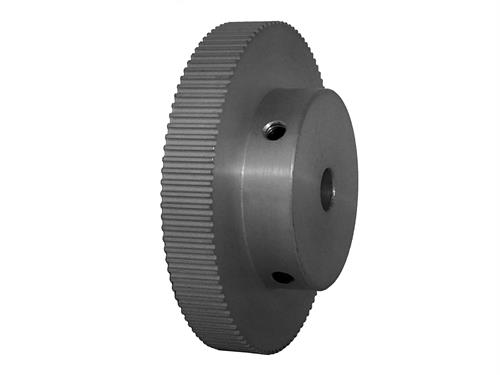

100-2P06-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100-2P06-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 100-2P06-6A4
Teeth 100
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.506
Outside Diameter (in) 2.486
Flange Diameter (in) 2.710
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.375
Unit System Inch
P.D. (mm) 64.00
O.D. (mm) 63.20
MOQ 1
Weight (lb) 0.25
Part Number Cross Reference A 6A51-100NF0610, A6A51-100NF0610, 2MR-100S-06, TP2A3H6-100, 100-2GT06-2A X 5/16, 100-2GT06-2A X 5/16, 100-2P06-6A4, 100-2P06-6A4
Set Screw Quantity 2

Related Products

Comparable to: A 6A51-100NF0610, A6A51-100NF0610, 2MR-100S-06, TP2A3H6-100, 100-2GT06-2A X 5/16, 100-2GT06-2A X 5/16, 100-2P06-6A4, 100-2P06-6A4
