1000-D5M-09 Powerhouse™ HTD® Belts

1000-D5M-09, TP1000-5M-09

Product Details for 1000-D5M-09

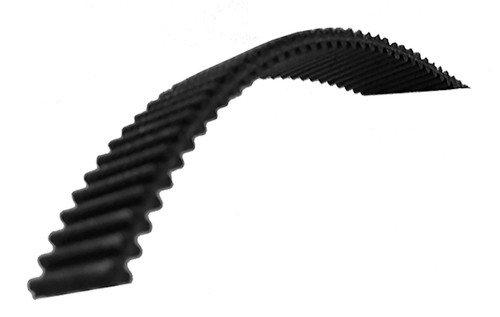

1000-D5M-09, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 1000-D5M-09
Teeth 200
Tooth Style HTD 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 9.00
Pitch Length (mm) 1,000.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.10
Discount Price (10-24 Qty.) (USD) 28.2
Discount Price (25-49 Qty.) (USD) 26.79
Discount Price (50-99 Qty.) (USD) 25.45
Discount Price (100-249 Qty.) (USD) 24.18
Part Number Cross Reference 1000-D5M-09, TP1000-5M-09

Documentation

Download Catalog 2015_BBMAN_FULL_CATALOG_224.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
