1050-D5P-09 Powerhouse™ Belts

1050-D5P-09, TP5MR-1050-09

Product Details for 1050-D5P-09

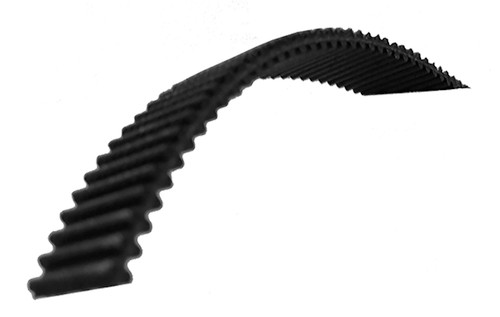

1050-D5P-09, Timing Belt, Powerhouse, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 1050-D5P-09
Teeth 210
Tooth Style GT 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 9.00
Pitch Length (mm) 1,050.00
Construction Neoprene
Reinforcement Fiberglass
Part Number Cross Reference 1050-D5P-09, TP5MR-1050-09

Documentation

General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
