105V1400J, V-Belt Pulley

105V1400J, 5V141, 10-5V14.0, 10/5V1400J

105V1400J

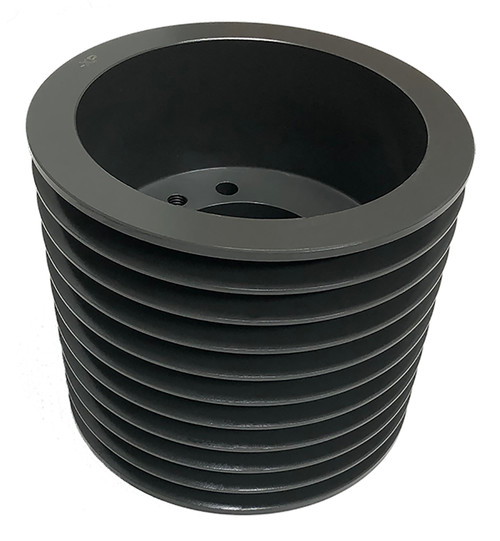

105V1400J, V-Belt Pulley, Cast Iron

Learn more about 105V1400J V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 105V1400J
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for J Bushing
Pitch Diameter (in) 13.900
Outside Diameter (in) 14.000
Face Width (in) 7.188
Min. Bore (in) 1.5
Unit System Inch
Bushing J
E (in) 2.125
L (in) 4.625
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 130.00
Part Number Cross Reference QD10/5V14.00, 105V1400J, 5V14.0-10-J PULLEY, 20180723, 10-5V14.00-J SHEAVE, 5V14010, 10-5V14.00, 105V1400J, 456073, 105V1400J
Grooves 10

Related Products

Comparable to: QD10/5V14.00, 105V1400J, 5V14.0-10-J PULLEY, 20180723, 10-5V14.00-J SHEAVE, 5V14010, 10-5V14.00, 105V1400J, 456073, 105V1400J
