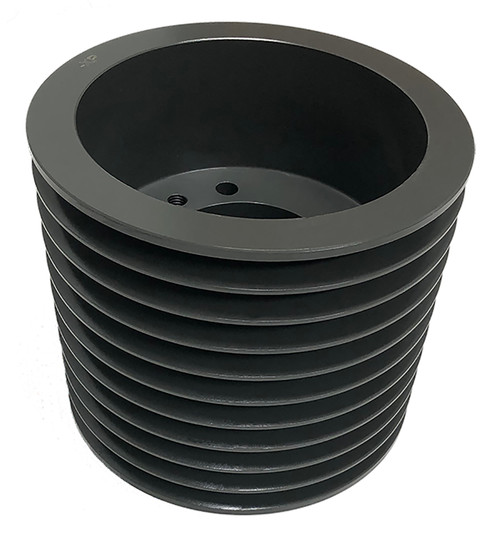

105V1600J, V-Belt Pulley

105V1600J, 5V161, 10-5V16.0, 10/5V1600J

105V1600J

105V1600J, V-Belt Pulley, Cast Iron

Learn more about 105V1600J V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 105V1600J
Type A-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for J Bushing
Pitch Diameter (in) 15.900
Outside Diameter (in) 16.000
Face Width (in) 7.188
Min. Bore (in) 1.500
Unit System Inch
Bushing J
E (in) 2 1/8
L (in) 4 5/8
M (in) 85v 105v.m]
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 146.00
Part Number Cross Reference QD10/5V16.00, 105V1600J, 105V1600J
Grooves 10

Related Products

Comparable to: QD10/5V16.00, 105V1600J, 105V1600J
