105V2360M, V-Belt Pulley

105V2360M, 5V2361, 10-5V23.6, 10/5V2360M

105V2360M

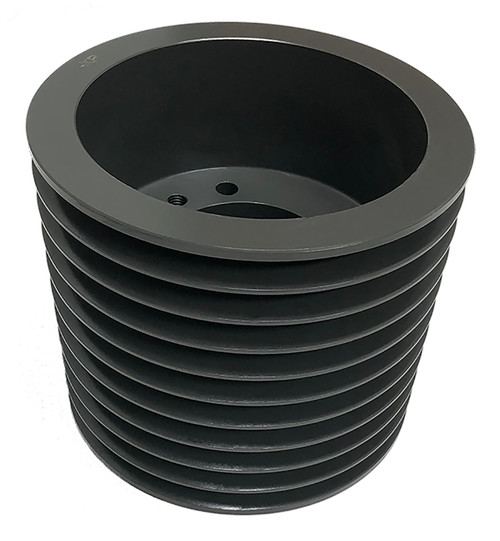

105V2360M, V-Belt Pulley, Cast Iron

Learn more about 105V2360M V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 105V2360M
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for M Bushing
Pitch Diameter (in) 23.500
Outside Diameter (in) 23.600
Face Width (in) 7.188
Min. Bore (in) 2
Unit System Inch
Bushing M
E (in) 0.3437
L (in) 6.75
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 213.00
Part Number Cross Reference QD10/5V23.60, 105V2360M, 5V23.6-10-M, 20180776, 10-5V23.60-M SHEAVE, 5V23610, 10-5V23.60, 105V2360M, 456078, 105V2360M
Grooves 10

Related Products

Comparable to: QD10/5V23.60, 105V2360M, 5V23.6-10-M, 20180776, 10-5V23.60-M SHEAVE, 5V23610, 10-5V23.60, 105V2360M, 456078, 105V2360M
