108LT312-6A4 Imperial Pitch Pulleys

108LT312-6A4, A 6A61-08NF03110, A6A61-08NF03110

Product Details for 108LT312-6A4

Comparable to: 108LT312-6A4, A 6A61-08NF03110, A6A61-08NF03110

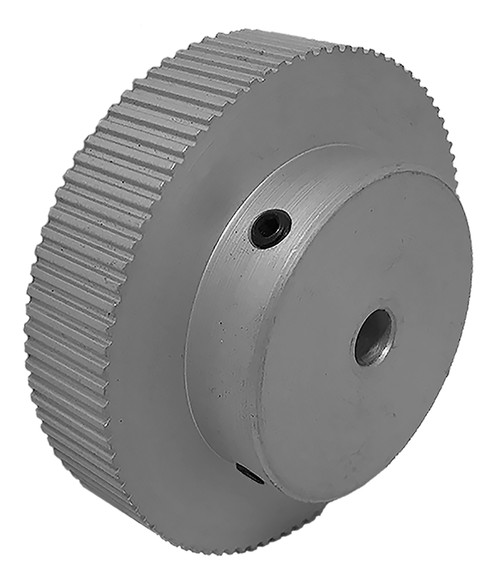

108LT312-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 108LT312-6A4
Teeth 108
Tooth Style LT
For Belt Width (in) 0.313
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.808
Outside Diameter (in) 2.794
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.36
Part Number Cross Reference 108LT312-6A4, A 6A61-08NF03110, A6A61-08NF03110

Documentation

Download Catalog 2015_BBMAN_CATALOG_15.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 108LT312-6A4_REACH_cert
RoHS Certification 108LT312-6A4_RoHS_cert
