108V1250J, V-Belt Pulley

108V1250J, QD10/8V12.

Product Details for 108V1250J

Comparable to: QD10/8V12.50, 10 8V 1250 J, 10-8V1250.J, 8V12.5-10-J PULLEY, 20180923, 10/8V12.5–J, 108V12.5, 8V12.5-10-J, 10/8V1250J

Click to Enlarge

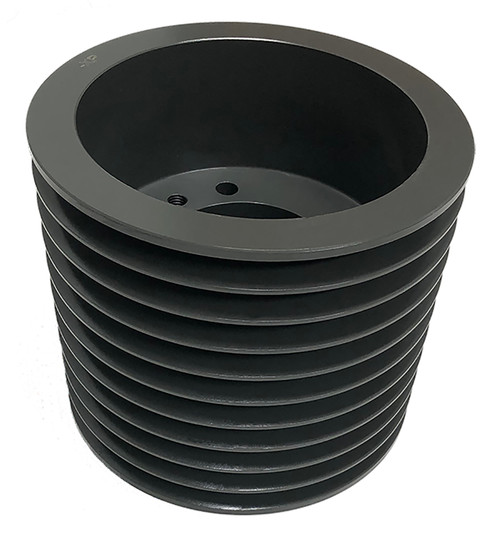

108V1250J, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 108V1250J in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 108V1250J
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 12.300
Outside Diameter (in) 12.500
Face Width (in) 11.625
Min. Bore (in) 1.500
Unit System Inch
Bushing J
E (in) 2 1/8
L (in) 4 5/8
M (in) 4 7/8
MOQ 1
Weight (lb) 155.00
Part Number Cross Reference QD10/8V12.50, 10 8V 1250 J, 10-8V1250.J, 8V12.5-10-J PULLEY, 20180923, 10/8V12.5–J, 108V12.5, 8V12.5-10-J, 10/8V1250J
Grooves 10
Set Screw Quantity 0
