108V1800M, V-Belt Pulley

108V1800M, QD10/8V18.

108V1800M

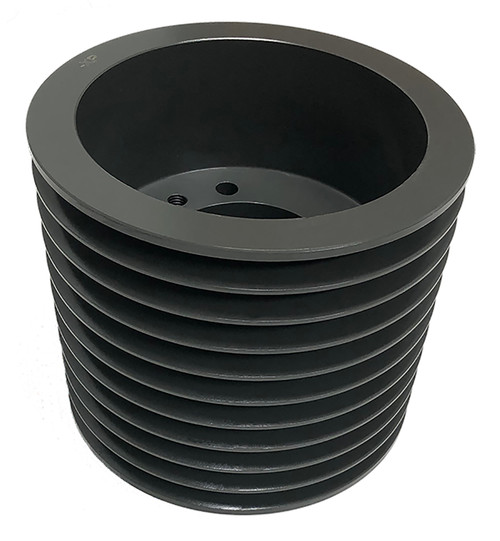

108V1800M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 108V1800M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 108V1800M
Type A-2
Material Cast Iron
Bore Type QD
Bore Description Bored for M Bushing
Pitch Diameter (in) 17.800
Outside Diameter (in) 18.000
Face Width (in) 11.625
Min. Bore (in) 2
Unit System Inch
Bushing M
E (in) 2.3437
L (in) 6.75
M (in) 2.5312
MOQ 1
Sheave Type 8V
For Belt Type 8V
Weight (lb) 290.00
Part Number Cross Reference QD10/8V18.00, 8V18.0-10-M PULLEY, 20180959, 10-8V18.00-M SHEAVE, 8V18010, 10-8V18.00, 108V1800M, 455478, 108V1800M
Grooves 10

Related Products

Comparable to: QD10/8V18.00, 8V18.0-10-M PULLEY, 20180959, 10-8V18.00-M SHEAVE, 8V18010, 10-8V18.00, 108V1800M, 455478, 108V1800M
