108V2240N, V-Belt Pulley

108V2240N, QD10/8V22.

108V2240N

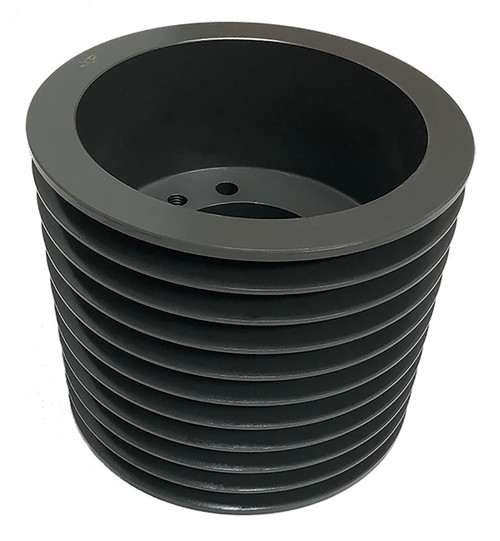

108V2240N, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 108V2240N to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 108V2240N
Type A-2
Material Cast Iron
Bore Type QD
Bore Description Bored for N Bushing
Pitch Diameter (in) 22.200
Outside Diameter (in) 22.400
Face Width (in) 11.625
Min. Bore (in) 2.4375
Unit System Inch
Bushing N
E (in) 0.1875
L (in) 8.125
M (in) 3.3125
MOQ 1
Sheave Type 8V
For Belt Type 8V
Weight (lb) 365.00
Part Number Cross Reference QD10/8V22.40, 8V22.4-10-N PULLEY, 20180983, 10-8V22.40-N SHEAVE, 8V22410, 10-8V22.40, 108V2240N, 455482, 108V2240N
Grooves 10

Related Products

Comparable to: QD10/8V22.40, 8V22.4-10-N PULLEY, 20180983, 10-8V22.40-N SHEAVE, 8V22410, 10-8V22.40, 108V2240N, 455482, 108V2240N
