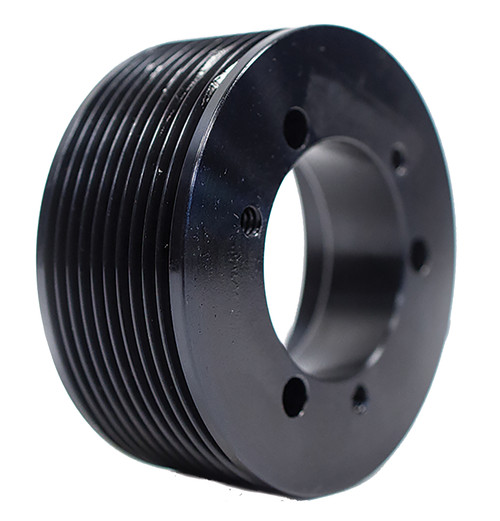

10J280JA, Poly-V Pulley

10J280JA

10J280JA, Poly-V Pulley, Steel, Black Oxide

Learn more about 10J280JA Poly-V Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	10J280JA
Material	Steel
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	2.830
Outside Diameter (in)	2.800
Min. Bore (in)	0.5
Unit System	Inch
Bushing	JA
Ribs	10.000
MOQ	1
Sheave Type	J
For Belt Type	J-Section
Weight (lb)	1.06
Part Number Cross Reference	10J280, 10J280JA, 10J280JA
Grooves	10
