10XL037-6FS3, Timing Pulley

10XL037-6FS3

Click to Enlarge

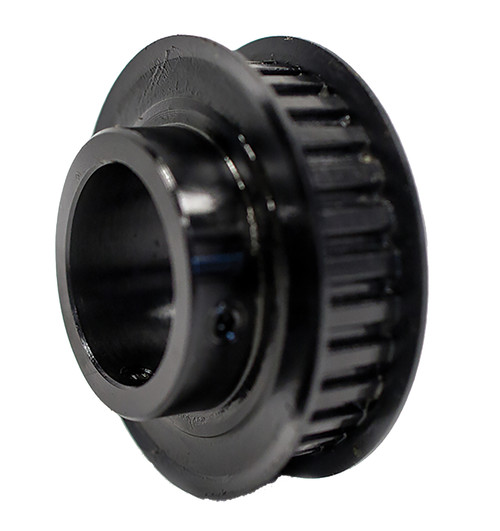

10XL037-6FS3, Timing Pulley, Steel, Black Oxide

Learn more about 10XL037-6FS3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	10XL037-6FS3
Teeth	10
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.250
Bore Description	1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	0.637
Outside Diameter (in)	0.617
Flange Diameter (in)	0.875
Face Width (in)	0.563
Overall Length (in)	0.812
Hub Diameter (in)	0.437
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	16.00
O.D. (mm)	15.70
Flange Diameter (mm)	22.23
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	A 6C3-10DF03708, A6C3-10DF03708, 10XL037 1/4 6FS, 10XL037-1S X 1/4, 10XL037-6FS3, 10XL037-6FS3
Set Screw Quantity	2
