11-3M06M6CA3, Timing Pulley

11-3M06M6CA3

Click to Enlarge

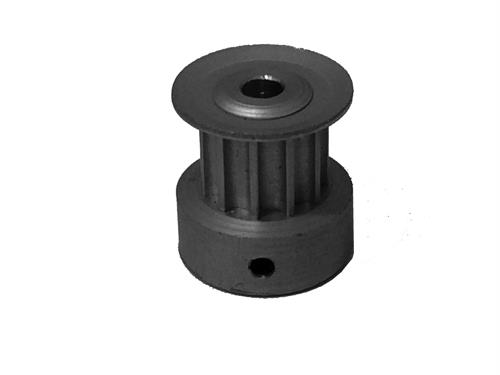

11-3M06M6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 11-3M06M6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	11-3M06M6CA3
Teeth	11
Tooth Style	HTD3mm
For Belt Width (mm)	6.00
Type	6C
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	3 mm Finished Bore
Bore (mm)	3.00
Pitch Diameter (in)	0.414
Outside Diameter (in)	0.384
Flange Diameter (in)	0.530
Face Width (in)	0.327
Pulley Belt Width (mm)	7.20
Unit System	Metric
P.D. (mm)	10.00
O.D. (mm)	9.70
Flange Diameter (mm)	13.50
Overall Length (mm)	14.50
Hub Diameter (mm)	13.50
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A23M011DF0603, A6A23M011DF0603, 11-3M06M6CA3, 11-3M06M6CA3
Set Screw Quantity	1
