112-8MX62-3020 Powerhouse™ Mx Pulleys

112-8MX62-3020, 8MX-112S-62, B8MCS-112-62

Product Details for 112-8MX62-3020

Comparable to: 112-8MX62-3020, 8MX-112S-62, B8MCS-112-62

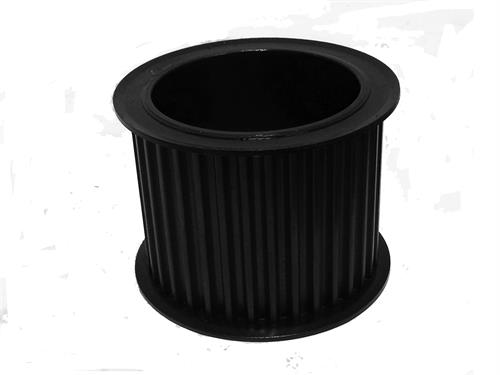

112-8MX62-3020, Timing Pulley, Powerhouse MX, 3020 Bushing, Cast Iron

Specifications

Product Number 112-8MX62-3020
Teeth 112
Tooth Style GT2 8mm
For Belt Width (mm) 62.000
Type D2
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.166
Face Width (in) 2.906
Overall Length (in) 2.906
Unit System Inch
Bushing 3020
Weight (lb) 31.00
List Price (1-9 Qty.) (USD) 358.62
Discount Price (10-24 Qty.) (USD) 313.79
Discount Price (25-49 Qty.) (USD) 277.93
Part Number Cross Reference 112-8MX62-3020, 8MX-112S-62, B8MCS-112-62

Documentation

Download Catalog 2015_BBMAN_CATALOG_164.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 112-8MX62-3020_REACH_cert
RoHS Certification 112-8MX62-3020_RoHS_cert
