112-8P85-3020 Powerhouse™ Pulleys

112-8P85-3020, P112-8MGT-85, B1128M85TL, P112-8M-85-3020, 201827

Product Details for 112-8P85-3020

Comparable to: 112-8P85-3020, P112-8MGT-85, B1128M85TL, P112-8M-85-3020, 201827

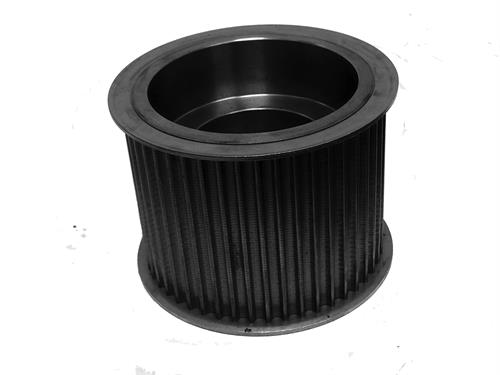

112-8P85-3020, Timing Pulley, Powerhouse, 3020 Bushing, Cast Iron

Specifications

Teeth 112
Tooth Style GT 8mm
For Belt Width (mm) 85.000
Type D1
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.175
Face Width (in) 3.750
Overall Length (in) 3.750
Unit System Inch
Bushing 3020
Weight (lb) 37.84
Part Number Cross Reference 112-8P85-3020, P112-8MGT-85, B1128M85TL, P112-8M-85-3020, 201827
