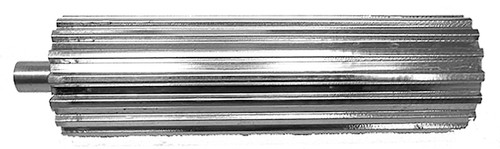

11T10-PS140A, Timing Pulley Stock

11T10-PS140A

11T10-PS140A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 11T10-PS140A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	11T10-PS140A
Teeth	11
Tooth Style	T10mm
Material	Aluminum
Pitch Diameter (in)	1.384
Outside Diameter (in)	1.306
Overall Length (in)	7.100
Unit System	Metric
Min. Usable Length (in)	5.500
P.D. (mm)	35.20
O.D. (mm)	33.20
Min. Usable Length (mm)	140.00
Overall Length (mm)	165.00
MOQ	1
Weight (lb)	0.65
Part Number Cross Reference	A 6A38M011T14, A6A38M011T14, T10-11S-PS-140A, 11T10-PS-140A, 11T10-PS140A, 11T10-PS140A
Shank Length (in)	1.6000

Comparable to: A 6A38M011T14, A6A38M011T14, T10-11S-PS-140A, 11T10-PS-140A, 11T10-PS140A, 11T10-PS140A
