120-2P09-6A5, Timing Pulley

120-2P09-6A5 - Aluminum Powerhouse® Pulleys

120-2P09-6A5

Click to Enlarge

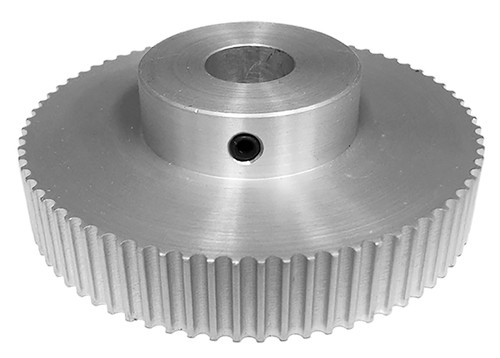

120-2P09-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 120-2P09-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 120-2P09-6A5
Teeth 120
Tooth Style 2P
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.988
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.500
Unit System Inch
P.D. (mm) 76.00
O.D. (mm) 75.90
MOQ 1
Weight (lb) 0.42
Part Number Cross Reference 2MR-120S-09, 120-2P09-6A5
Set Screw Quantity 2
