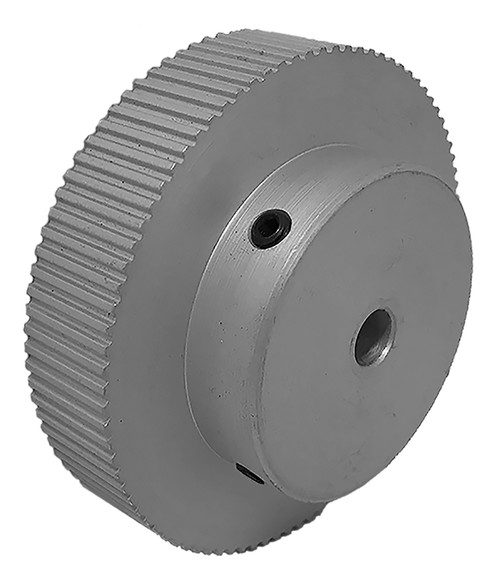

120LT312-6A4, Timing Pulley

120LT312-6A4 - Aluminum Imperial Pitch Pulleys

120LT312-6A4

120LT312-6A4 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

120LT312-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 120LT312-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 120LT312-6A4
Teeth 120
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 3.117
Outside Diameter (in) 3.097
Face Width (in) 0.875
Overall Length (in) 1.500
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 79.00
O.D. (mm) 78.70
MOQ 1
Weight (lb) 0.41
Part Number Cross Reference 120LT312-6A4
Set Screw Quantity 2
