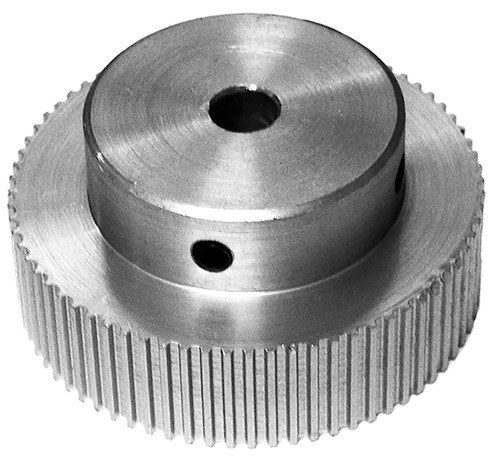

120MP037-6A5 Imperial Pitch Pulleys

120MP037-6A5

Product Details for 120MP037-6A5

120MP037-6A5, Timing Pulley, Teeth;120 | Pitch;MXL | For Belt Width;0.375 inch | Configuration;Standard Hub and No Flanges | Bore Size;0.375 inch | Material;Clear Anodized Aluminum

Specifications

Product Number 120MP037-6A5
Teeth 120
Tooth Style MXL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Pitch Diameter (in) 3.056
Outside Diameter (in) 3.036
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.500
Unit System Inch
Weight (lb) 0.50
List Price (1-9 Qty.) (USD) $21.66
Discount Price (10-24 Qty.) (USD) $19.75
Discount Price (25-49 Qty.) (USD) $15.11
Discount Price (50-99 Qty.) (USD) $14.10
Discount Price (100-249 Qty.) (USD) $13.10
Part Number Cross Reference A6A16-120NF3712 A 6A16-120NF3712 120MP-037 3/8 6 120MXL037-2A X 3/8
