12XL025-6FA2, Timing Pulley

12XL025-6FA2

Click to Enlarge

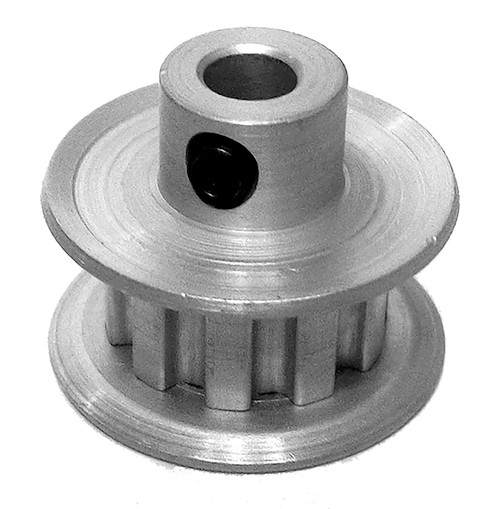

12XL025-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12XL025-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	12XL025-6FA2
Teeth	12
Tooth Style	XL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.188
Bore Description	3/16 Inch Finished Bore
Pitch Diameter (in)	0.764
Outside Diameter (in)	0.744
Flange Diameter (in)	1.000
Face Width (in)	0.438
Overall Length (in)	0.688
Hub Diameter (in)	0.500
Min. Bore (in)	0.1875
Pulley Belt Width (in)	0.310
Unit System	Inch
P.D. (mm)	19.00
O.D. (mm)	18.90
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	PB12XL025, 12XL025-6FA2
Set Screw Quantity	2
