12XL025M6FA6, Timing Pulley

12XL025M6FA6 - Aluminum Metric Pulleys

12XL025M6FA6

Click to Enlarge

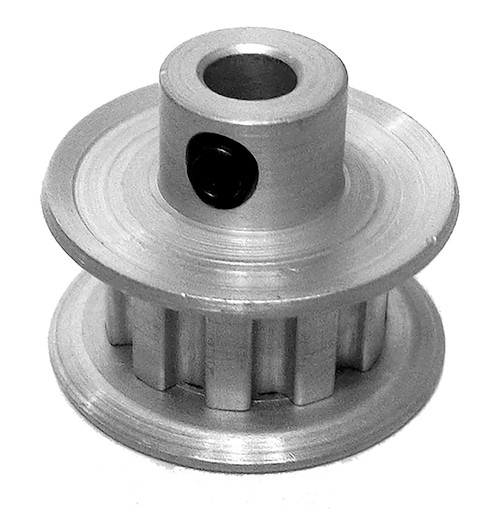

12XL025M6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12XL025M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 12XL025M6FA6
Teeth 12
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Pulley Belt Width (mm) 7.90
Unit System Metric
P.D. (mm) 19.00
O.D. (mm) 18.90
Flange Diameter (mm) 25.00
Face Width (mm) 11.10
Overall Length (mm) 17.50
Hub Diameter (mm) 13.00
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3M012DF06006, A6A3M012DF06006, 12XL025M6FA6, 12XL025M6FA6
Set Screw Quantity 2
