130-3M-PS8A, Timing Pulley Stock

130-3M-PS8A, A6A22M0130TM20, A 6A22M0130TM20, 130-3M-PS-8A, 130-3M-P-8A

Product Details for 130-3M-PS8A

Comparable to: A 6A22M0130TM20, A6A22M0130TM20, 130-3M-PS-8A, 130-3M-P-8A, 130-3M-PS8A

Click to Enlarge

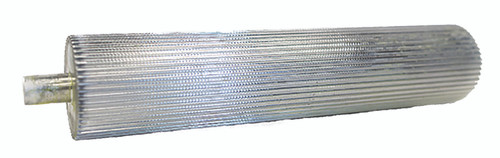

130-3M-PS8A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 130-3M-PS8A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 130-3M-PS8A
Teeth 130
Tooth Style HTD 3mm
Material Aluminum
Finish Clear Anodized
Pitch Diameter (in) 4.887
Outside Diameter (in) 4.857
Overall Length (in) 8.750
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 124.10
O.D. (mm) 123.40
MOQ 1
Weight (lb) 14.25
Part Number Cross Reference A 6A22M0130TM20, A6A22M0130TM20, 130-3M-PS-8A, 130-3M-P-8A, 130-3M-PS8A
Shank Length (in) 0.7500
