130LT312-6A5, Timing Pulley

130LT312-6A5

Click to Enlarge

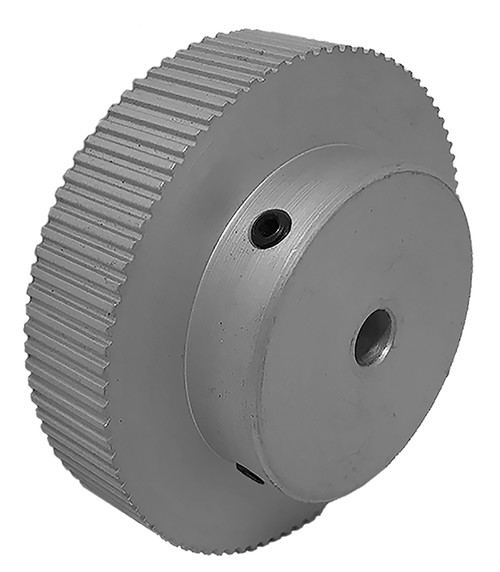

130LT312-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 130LT312-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	130LT312-6A5
Teeth	130
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	3.377
Outside Diameter (in)	3.357
Face Width (in)	0.875
Overall Length (in)	1.625
Hub Diameter (in)	1.625
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	86.00
O.D. (mm)	85.30
MOQ	1
Weight (lb)	0.50
Part Number Cross Reference	A 6A6-130NF03112, A6A6-130NF03112, 130LT-312 X 3/8 6, 130M312-2A X 3/8, 130LT312-6A5, 130LT312-6A5
Set Screw Quantity	2
