13T5-PS125A, Timing Pulley Stock

13T5-PS125A, A6A34M013T12, A 6A34M013T12, 13T5-PS-125

13T5-PS125A

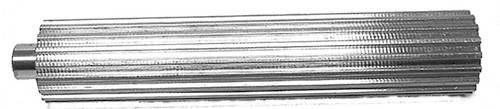

13T5-PS125A, Timing Pulley Stock, Aluminum

Learn more about 13T5-PS125A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 13T5-PS125A
Teeth 13
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 0.821
Outside Diameter (in) 0.781
Overall Length (in) 5.700
Unit System Metric
Min. Usable Length (in) 4.900
P.D. (mm) 20.90
O.D. (mm) 19.80
Min. Usable Length (mm) 125.00
Overall Length (mm) 150.00
MOQ 1
Weight (lb) 0.21
Part Number Cross Reference A 6A34M013T12, A6A34M013T12, T5-13S-PS-125A, 13T5-PS-125A, 13-5M-P-6A, 13T5-PS125A, 13T5-PS125A
Shank Length (in) 0.8000

Comparable to: A 6A34M013T12, A6A34M013T12, T5-13S-PS-125A, 13T5-PS-125A, 13-5M-P-6A, 13T5-PS125A, 13T5-PS125A
