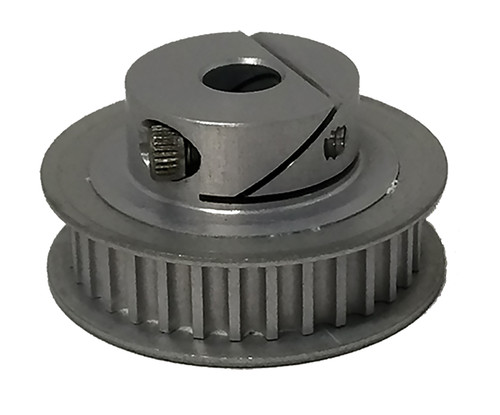

14-3M06-IA2, Timing Pulley

14-3M06-IA2 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

14-3M06-IA2

14-3M06-IA2 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

14-3M06-IA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 14-3M06-IA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 14-3M06-IA2
Teeth 14
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.526
Outside Diameter (in) 0.496
Flange Diameter (in) 0.635
Face Width (in) 0.334
Overall Length (in) 0.563
Hub Diameter (in) 0.625
Min. Bore (in) 0.1875
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.60
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 14-3M06-IA2, 14-3M06-IA2
