14H150-6FS8, Timing Pulley

14H150-6FS8

Click to Enlarge

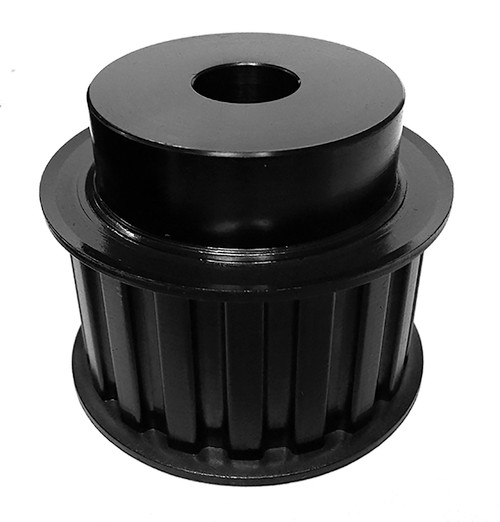

14H150-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 14H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	14H150-6FS8
Teeth	14
Tooth Style	H
For Belt Width (in)	1.5000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	2.228
Outside Diameter (in)	2.174
Flange Diameter (in)	2.461
Face Width (in)	1.812
Overall Length (in)	2.375
Hub Diameter (in)	1.625
Min. Bore (in)	0.75
Pulley Belt Width (in)	1.562
Unit System	Inch
P.D. (mm)	57.00
O.D. (mm)	55.20
MOQ	1
Weight (lb)	1.91
Part Number Cross Reference	14H150, 14HB150, 14H150 X 3/4 MPB, 14H150MPB, P14H150, 35376557, P14H150-PB, 14H150-6FS8, 114344, 14H150-6FS8
