14XL037M6A8, Timing Pulley

14XL037M6A8 - Aluminum Metric Pulleys

14XL037M6A8

Click to Enlarge

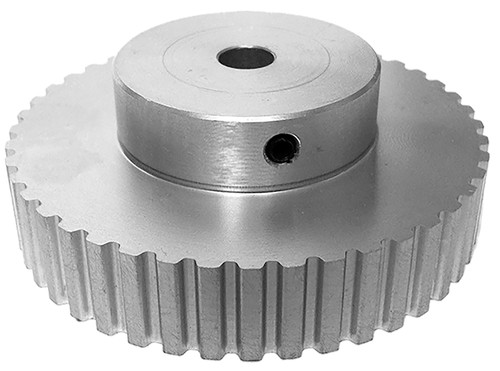

14XL037M6A8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 14XL037M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 14XL037M6A8
Teeth 14
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 0.891
Outside Diameter (in) 0.871
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.10
Face Width (mm) 20.60
Overall Length (mm) 9.50
Hub Diameter (mm) 16.00
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A AMNF, A6A3M14NF09508, 14XL037M6A8
Set Screw Quantity 2
