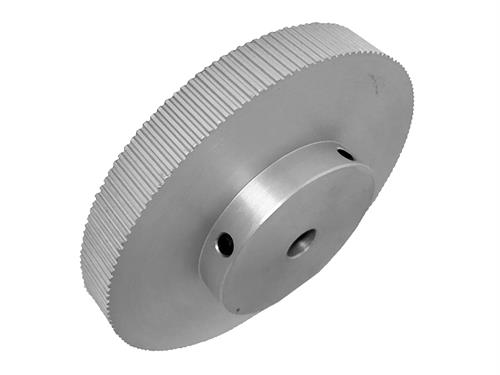

150LT312-6A5, Timing Pulley

150LT312-6A5 - Aluminum Imperial Pitch Pulleys

150LT312-6A5

150LT312-6A5 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

150LT312-6A5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 150LT312-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 150LT312-6A5
Teeth 150
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 3.896
Outside Diameter (in) 3.876
Face Width (in) 0.875
Overall Length (in) 2.000
Hub Diameter (in) 2.000
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 99.00
O.D. (mm) 98.50
MOQ 1
Weight (lb) 0.73
Part Number Cross Reference 150LT312-6A5
Set Screw Quantity 2
