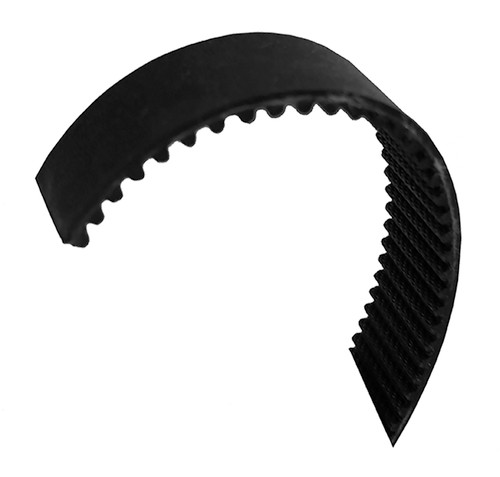

1512-3M-09 Powerhouse™ HTD® Belts

1512-3M-09, A 6R23M504090, A6R23M504090, 1512-3M

Product Details for 1512-3M-09

Comparable to: 1512-3M-09, A 6R23M504090, A6R23M504090, 1512-3M

1512-3M-09, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass

Specifications

Product Number 1512-3M-09
Teeth 504
Tooth Style HTD 3mm
Unit System Metric
Belt Type Single Sided
Belt Width (mm) 9.00
Pitch Length (mm) 1,512.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.08
Part Number Cross Reference 1512-3M-09, A 6R23M504090, A6R23M504090, 1512-3M

Documentation

Download Catalog 2015_BBMAN_CATALOG_218.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 1512-3M-09_REACH_cert
RoHS Certification 1512-3M-09_RoHS_cert
