15L050-6FS6, Timing Pulley

15L050-6FS6 - Steel Imperial Pitch Pulleys

Product Details for 15L050-6FS6

Comparable to: 15L050-6FS6, A 6C4-15DFB5016, A6C4-15DFB5016, PB15L050, 78231524, 1144

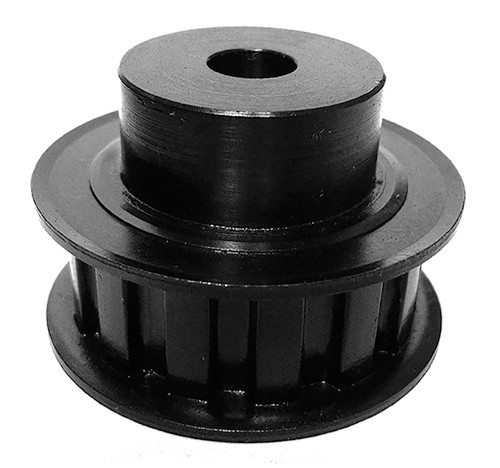

15L050-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 15L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 15L050-6FS6
Teeth 15
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.790
Outside Diameter (in) 1.760
Flange Diameter (in) 2.031
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.344
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Max. Bore (in) 1.094
Weight (lb) 0.67
Part Number Cross Reference 15L050-6FS6, A 6C4-15DFB5016, A6C4-15DFB5016, PB15L050, 78231524, 1144
