16H100-6FS7, Timing Pulley

16H100-6FS7

Click to Enlarge

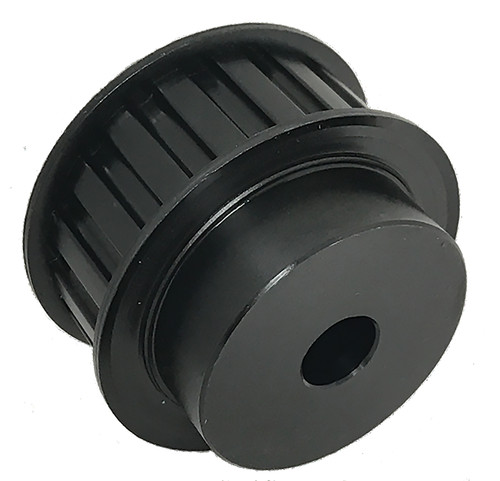

16H100-6FS7, Timing Pulley, Steel, Black Oxide

Learn more about 16H100-6FS7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	16H100-6FS7
Teeth	16
Tooth Style	H
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	2.546
Outside Diameter (in)	2.492
Flange Diameter (in)	2.780
Face Width (in)	1.312
Overall Length (in)	2.000
Hub Diameter (in)	1.875
Min. Bore (in)	0.625
Pulley Belt Width (in)	1.062
Unit System	Inch
P.D. (mm)	65.00
O.D. (mm)	63.30
MOQ	1
Weight (lb)	2.15
Part Number Cross Reference	16H100, 16HB100, 16H100 X 5/8 MPB, 16H100MPB, P16H100, 6495K44, 35376508, P16H100-PB, 16H100-6FS7, 114335, 16H100-6FS7
