16H200-6FS8, Timing Pulley

16H200-6FS8

Click to Enlarge

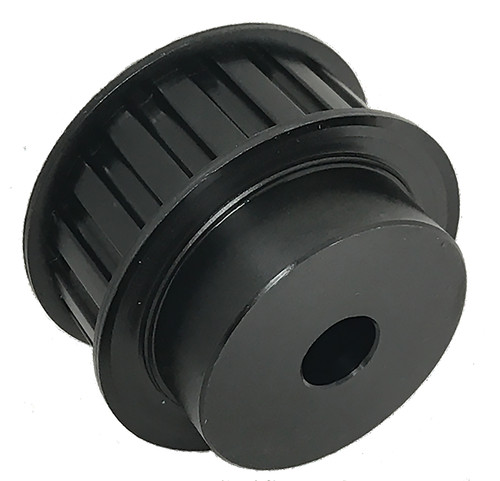

16H200-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 16H200-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	16H200-6FS8
Teeth	16
Tooth Style	H
For Belt Width (in)	2.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	2.546
Outside Diameter (in)	2.492
Flange Diameter (in)	2.780
Face Width (in)	2.344
Overall Length (in)	3.031
Hub Diameter (in)	1.875
Min. Bore (in)	0.75
Pulley Belt Width (in)	2.094
Unit System	Inch
P.D. (mm)	65.00
O.D. (mm)	63.30
MOQ	1
Weight (lb)	3.29
Part Number Cross Reference	16H200, 16HB200, 16H200 X 3/4 MPB, 16H200MPB, P16H200, P16H200-PB, 16H200-6FS8, 114355, 16H200-6FS8
