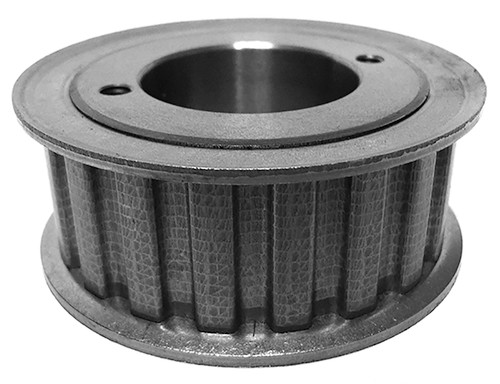

16HG100, Timing Pulley

16HG100 - Steel Imperial Pitch Pulleys

16HG100

16HG100 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

16HG100, Timing Pulley, Steel

Learn more about 16HG100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 16HG100
Teeth 16
Tooth Style H
For Belt Width (in) 1.0000
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for G Bushing
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.492
Flange Diameter (in) 2.875
Face Width (in) 1.250
Overall Length (in) 1.875
Min. Bore (in) 0.375
Unit System Inch
Bushing G
P.D. (mm) 65.00
O.D. (mm) 63.30
MOQ 1
Weight (lb) 1.40
Part Number Cross Reference 16HG100, 16HG100, 16HG100
