16HG150

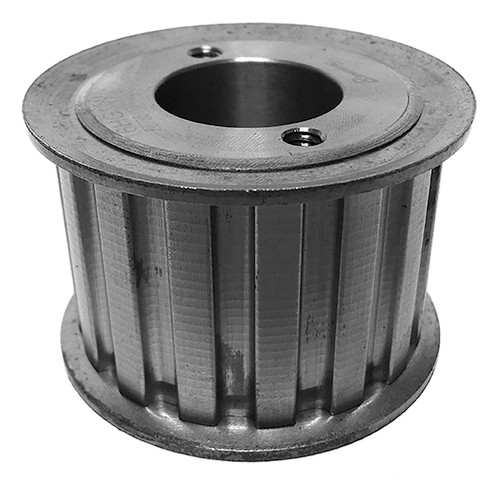

16HG150, Timing Pulley

16HG150

Click to Enlarge

16HG150, Timing Pulley, Steel

Learn more about 16HG150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	16HG150
Teeth	16
Tooth Style	H
For Belt Width (in)	1.5000
Type	4
Material	Steel
Flange Material	Steel
Bore Type	Split Taper
Bore Description	Bored for G Bushing
Pitch Diameter (in)	2.546
Outside Diameter (in)	2.492
Flange Diameter (in)	2.875
Face Width (in)	1.750
Overall Length (in)	2.375
Min. Bore (in)	0.375
Unit System	Inch
Bushing	G
P.D. (mm)	65.00
O.D. (mm)	63.30
MOQ	1
Weight (lb)	1.91
Part Number Cross Reference	16HG150, 16HG150, 16HG150
