16T10-PS160A Bar Stock

16T10-PS160A, A6A38M016T16, A 6A38M016T16, 16T10-PS-160

Product Details for 16T10-PS160A

Comparable to: 16T10-PS160A, A6A38M016T16, A 6A38M016T16, 16T10-PS-160

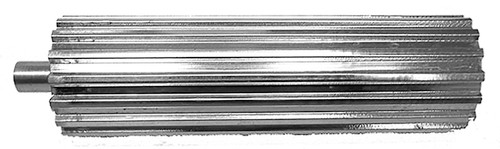

16T10-PS160A, Timing Pulley Stock, Powerhouse Timing, 160 mm Usable Length, Aluminum

Specifications

Product Number 16T10-PS160A
Teeth 16
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 2.010
Outside Diameter (in) 1.931
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 51.10
O.D. (mm) 49.00
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
Weight (lb) 1.65
List Price (1-9 Qty.) (USD) 37.16
Discount Price (10-24 Qty.) (USD) 29.73
Discount Price (25-49 Qty.) (USD) 26.01
Discount Price (50-99 Qty.) (USD) 23.23
Part Number Cross Reference 16T10-PS160A, A6A38M016T16, A 6A38M016T16, 16T10-PS-160

Documentation

Download Catalog 2015_BBMAN_CATALOG_282.pdf
For custom parts click here custom.html
REACH Certification 16T10-PS160A_REACH_cert
RoHS Certification 16T10-PS160A_RoHS_cert
