16T2.5/44-0 Metric Pulleys

16T2.5/44-0, A 6A32M044NF0606, A6A32M044NF0606

Product Details for 16T2.5/44-0

Comparable to: 16T2.5/44-0, A 6A32M044NF0606, A6A32M044NF0606

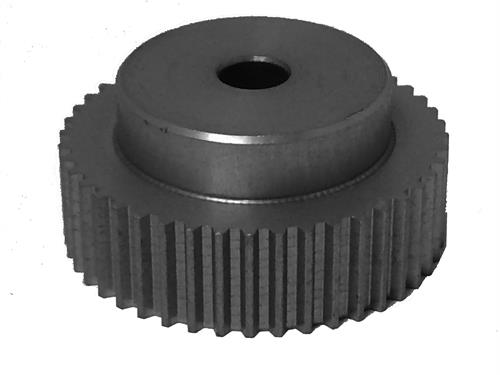

16T2.5/44-0, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 16T2.5/44-0
Teeth 44
Tooth Style T2.5mm
Type 6
Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 35.10
O.D. (mm) 34.50
Face Width (mm) 10.00
Overall Length (mm) 16.00
Hub Diameter (mm) 24.00
Weight (lb) 0.09
Part Number Cross Reference 16T2.5/44-0, A 6A32M044NF0606, A6A32M044NF0606

Documentation

Download Catalog 2015_BBMAN_CATALOG_76.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
For custom parts click here custom.html
REACH Certification 16T2_5_44-0_REACH_cert
RoHS Certification 16T2_5_44-0_RoHS_cert
