16XL025M6FA8, Timing Pulley

16XL025M6FA8

Click to Enlarge

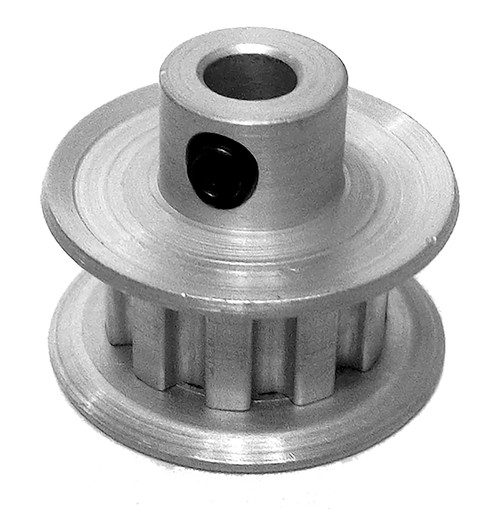

16XL025M6FA8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 16XL025M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	16XL025M6FA8
Teeth	16
Tooth Style	XL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	8 mm Finished Bore
Bore (mm)	8.00
Pitch Diameter (in)	1.019
Outside Diameter (in)	0.999
Pulley Belt Width (mm)	7.90
Unit System	Metric
P.D. (mm)	26.00
O.D. (mm)	25.40
Flange Diameter (mm)	32.00
Face Width (mm)	11.10
Overall Length (mm)	17.50
Hub Diameter (mm)	17.00
MOQ	1
Weight (lb)	0.04
Part Number Cross Reference	A 6A3M016DF06008, A6A3M016DF06008, 16XL025M6FA8, 16XL025M6FA8
Set Screw Quantity	2
