16XL037-6FS5, Timing Pulley

16XL037-6FS5 - Steel Imperial Pitch Pulleys

16XL037-6FS5

Click to Enlarge

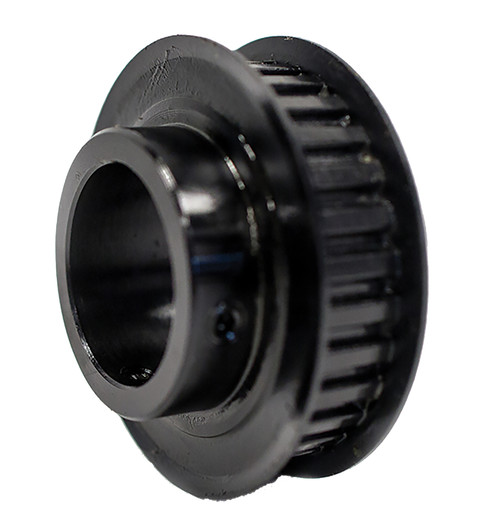

16XL037-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 16XL037-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 16XL037-6FS5
Teeth 16
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.250
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.688
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 26.00
O.D. (mm) 25.40
MOQ 1
Weight (lb) 0.13
Part Number Cross Reference 16XL037-6FS5
Set Screw Quantity 2
