17T5-PS140A, Timing Pulley Stock

17T5-PS140A, A6A34M017T14, A 6A34M017T14, 17T5-PS-140

Product Details for 17T5-PS140A

Comparable to: A 6A34M017T14, A6A34M017T14, 17T5-PS-140, T517

Click to Enlarge

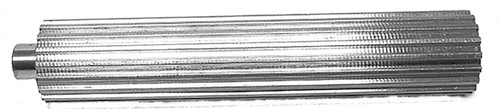

17T5-PS140A, Timing Pulley Stock, Aluminum

Learn more about 17T5-PS140A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 17T5-PS140A
Teeth 17
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 1.071
Outside Diameter (in) 1.031
Overall Length (in) 6.300
Unit System Metric
Min. Usable Length (in) 5.500
P.D. (mm) 27.20
O.D. (mm) 26.20
Min. Usable Length (mm) 140.00
Overall Length (mm) 165.00
MOQ 1
Weight (lb) 0.45
Part Number Cross Reference A 6A34M017T14, A6A34M017T14, 17T5-PS-140, T517
Shank Length (in) 0.8000
