18-3M06MIA6, Timing Pulley

18-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

18-3M06MIA6

Click to Enlarge

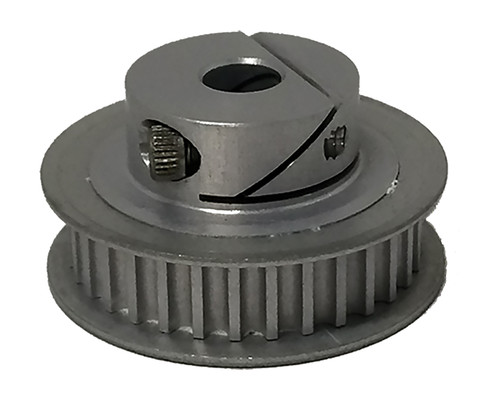

18-3M06MIA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18-3M06MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18-3M06MIA6
Teeth 18
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.677
Outside Diameter (in) 0.647
Unit System Metric
P.D. (mm) 17.00
O.D. (mm) 16.40
Flange Diameter (mm) 20.00
Face Width (mm) 9.80
Overall Length (mm) 17.10
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M2
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 18-3M06MIA6, 18-3M06MIA6
