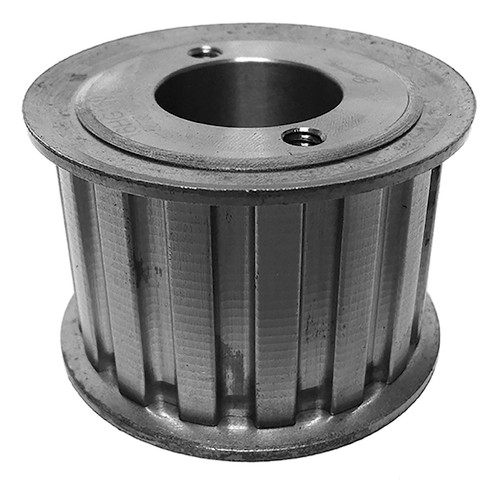

18HH150, Timing Pulley

18HH150 - Steel Imperial Pitch Pulleys

18HH150

18HH150 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

18HH150, Timing Pulley, Steel

Learn more about 18HH150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18HH150
Teeth 18
Tooth Style H
For Belt Width (in) 1.5000
Type 4
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.811
Flange Diameter (in) 3.125
Face Width (in) 1.750
Overall Length (in) 2.375
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 73.00
O.D. (mm) 71.40
MOQ 1
Weight (lb) 1.91
Part Number Cross Reference 18HH150, 18HH150, 18HH150
