18L075-6FS6, Timing Pulley

18L075-6FS6

Click to Enlarge

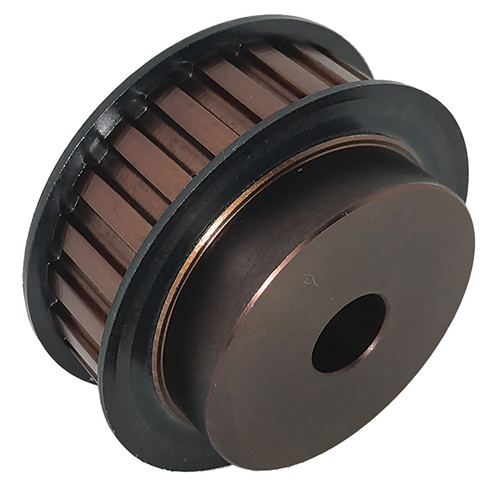

18L075-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 18L075-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	18L075-6FS6
Teeth	18
Tooth Style	L
For Belt Width (in)	0.7500
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.149
Outside Diameter (in)	2.119
Flange Diameter (in)	2.375
Face Width (in)	1.000
Overall Length (in)	1.500
Hub Diameter (in)	1.563
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.820
Unit System	Inch
P.D. (mm)	55.00
O.D. (mm)	53.80
MOQ	1
Weight (lb)	1.20
Part Number Cross Reference	18L075, 18LB075, 18L075 X 1/2 MPB, 18L075MPB, P18L075, P18L075-PB, 18L075-6FS6, 114313, 18L075-6FS6
