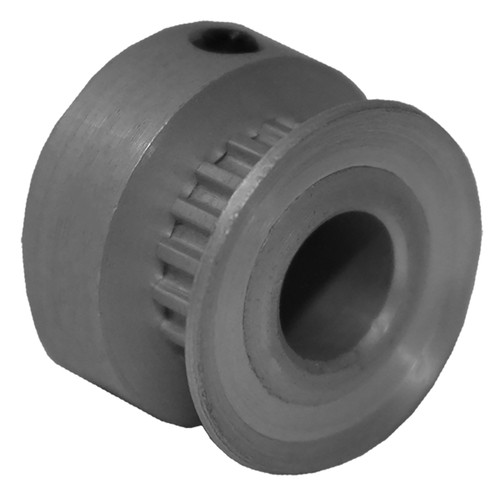

18MP012-6CA3, Timing Pulley

18MP012-6CA3 - Aluminum Imperial Pitch Pulleys

Product Details for 18MP012-6CA3

Comparable to: 18MP012-6CA3, A 6N16-018DF1208, A6N16-018DF1208, 18MP-012 1/4 6

18MP012-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18MP012-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18MP012-6CA3
Teeth 18
Tooth Style MXL
For Belt Width (in) 0.125
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.458
Outside Diameter (in) 0.438
Flange Diameter (in) 0.635
Face Width (in) 0.208
Overall Length (in) 0.438
Hub Diameter (in) 0.635
Set Screw 2 x 4-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.385
Weight (lb) 0.01
Part Number Cross Reference 18MP012-6CA3, A 6N16-018DF1208, A6N16-018DF1208, 18MP-012 1/4 6
