18T5-PS140A, Timing Pulley Stock

18T5-PS140A

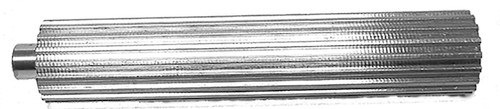

18T5-PS140A, Timing Pulley Stock, Aluminum

Learn more about 18T5-PS140A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	18T5-PS140A
Teeth	18
Tooth Style	T5mm
Material	Aluminum
Pitch Diameter (in)	1.134
Outside Diameter (in)	1.094
Overall Length (in)	6.300
Unit System	Metric
Min. Usable Length (in)	5.500
P.D. (mm)	28.80
O.D. (mm)	27.80
Min. Usable Length (mm)	140.00
Overall Length (mm)	165.00
MOQ	1
Weight (lb)	0.52
Part Number Cross Reference	A 6A34M018T14, A6A34M018T14, T5-18S-PS-140A, 18T5-PS-140A, 18-5M-P-8A, 18T5-PS140A, 18T5-PS140A
Shank Length (in)	0.8000
