18XHQ200, Timing Pulley

18XHQ200 - Cast Iron Imperial Pitch Pulleys

18XHQ200

Click to Enlarge

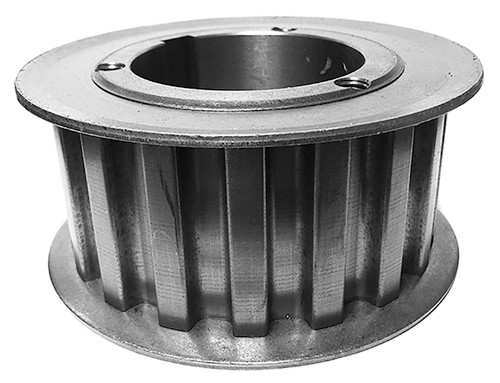

18XHQ200, Timing Pulley, Cast Iron

Learn more about 18XHQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18XHQ200
Teeth 18
Tooth Style XH
For Belt Width (in) 2.0000
Type 9
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) Q1
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.903
Flange Diameter (in) 5.563
Face Width (in) 2.563
Overall Length (in) 3.594
Min. Bore (in) 0.750
Unit System Inch
Bushing Q1
P.D. (mm) 127.00
O.D. (mm) 124.50
MOQ 1
Weight (lb) 7.42
Part Number Cross Reference 18XHQ200, 18XHQ200
