18XHQ300, Timing Pulley

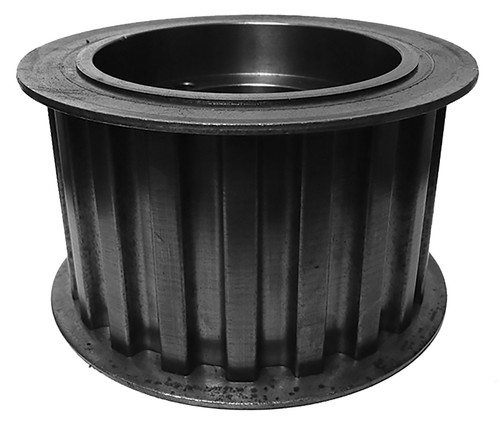

18XHQ300 - Cast Iron Imperial Pitch Pulleys

18XHQ300

18XHQ300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

18XHQ300, Timing Pulley, Cast Iron

Learn more about 18XHQ300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18XHQ300
Teeth 18
Tooth Style XH
For Belt Width (in) 3.0000
Type 9
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.903
Flange Diameter (in) 5.563
Face Width (in) 3.625
Overall Length (in) 4.656
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 127.00
O.D. (mm) 124.50
MOQ 1
Weight (lb) 10.45
Part Number Cross Reference 18XHQ300, 18XHQ300, 18XHQ300
