18XL037-6FA6, Timing Pulley

18XL037-6FA6

Click to Enlarge

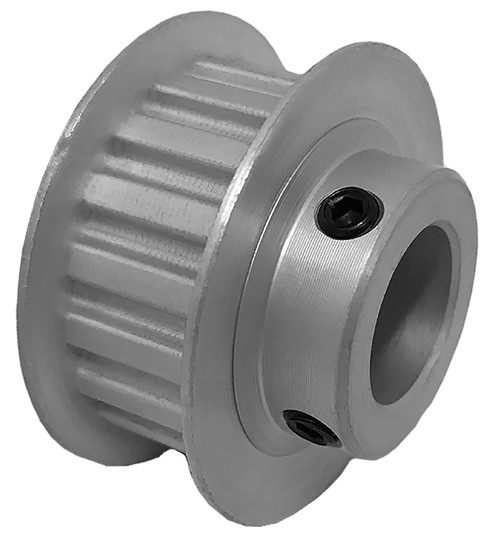

18XL037-6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18XL037-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	18XL037-6FA6
Teeth	18
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.500
Bore Description	1/2 Inch Finished Bore
Pitch Diameter (in)	1.146
Outside Diameter (in)	1.126
Flange Diameter (in)	1.375
Face Width (in)	0.563
Overall Length (in)	0.812
Hub Diameter (in)	0.812
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	29.00
O.D. (mm)	28.60
MOQ	1
Weight (lb)	0.06
Part Number Cross Reference	18XL037 X 1/2 6F, TP20A8W6-18, 18XL037-1A X 1/2, 18XL037-6FA6, 18XL037-6FA6
Set Screw Quantity	2
