19-5M09-6A3, Timing Pulley

19-5M09-6A3

Click to Enlarge

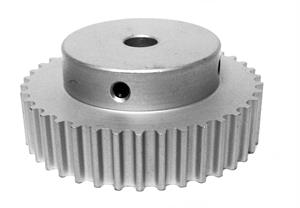

19-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	19-5M09-6A3
Teeth	19
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.191
Outside Diameter (in)	1.146
Face Width (in)	0.546
Overall Length (in)	0.796
Hub Diameter (in)	0.750
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	30.00
O.D. (mm)	29.10
MOQ	1
Weight (lb)	0.10
Part Number Cross Reference	A 6A25-019NF0908, A6A25-019NF0908, 19M5-L09M-6, PT019G08L09N, 19-5M09-6A3, 19-5M09-6A3
Set Screw Quantity	2
