19-5M15M6A8, Timing Pulley

19-5M15M6A8 - Aluminum Powerhouse®HTD® Pulleys

19-5M15M6A8

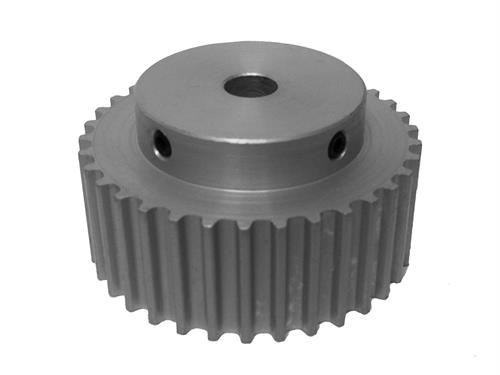

Click to Enlarge

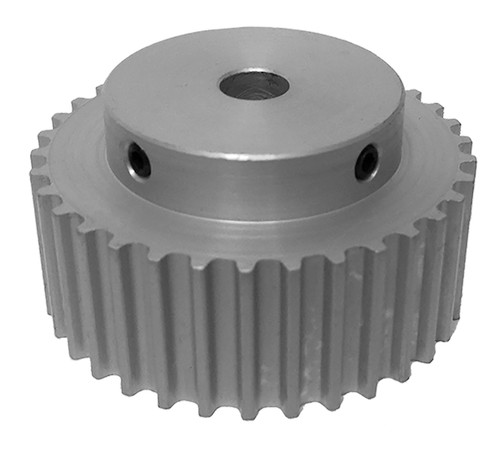

19-5M15M6A8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19-5M15M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19-5M15M6A8
Teeth 19
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.191
Outside Diameter (in) 1.146
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 30.00
O.D. (mm) 29.10
Face Width (mm) 19.80
Overall Length (mm) 26.20
Hub Diameter (mm) 19.10
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A25M019NF1508, A6A25M019NF1508, 19-5M15M6A8, 19-5M15M6A8
Set Screw Quantity 2
